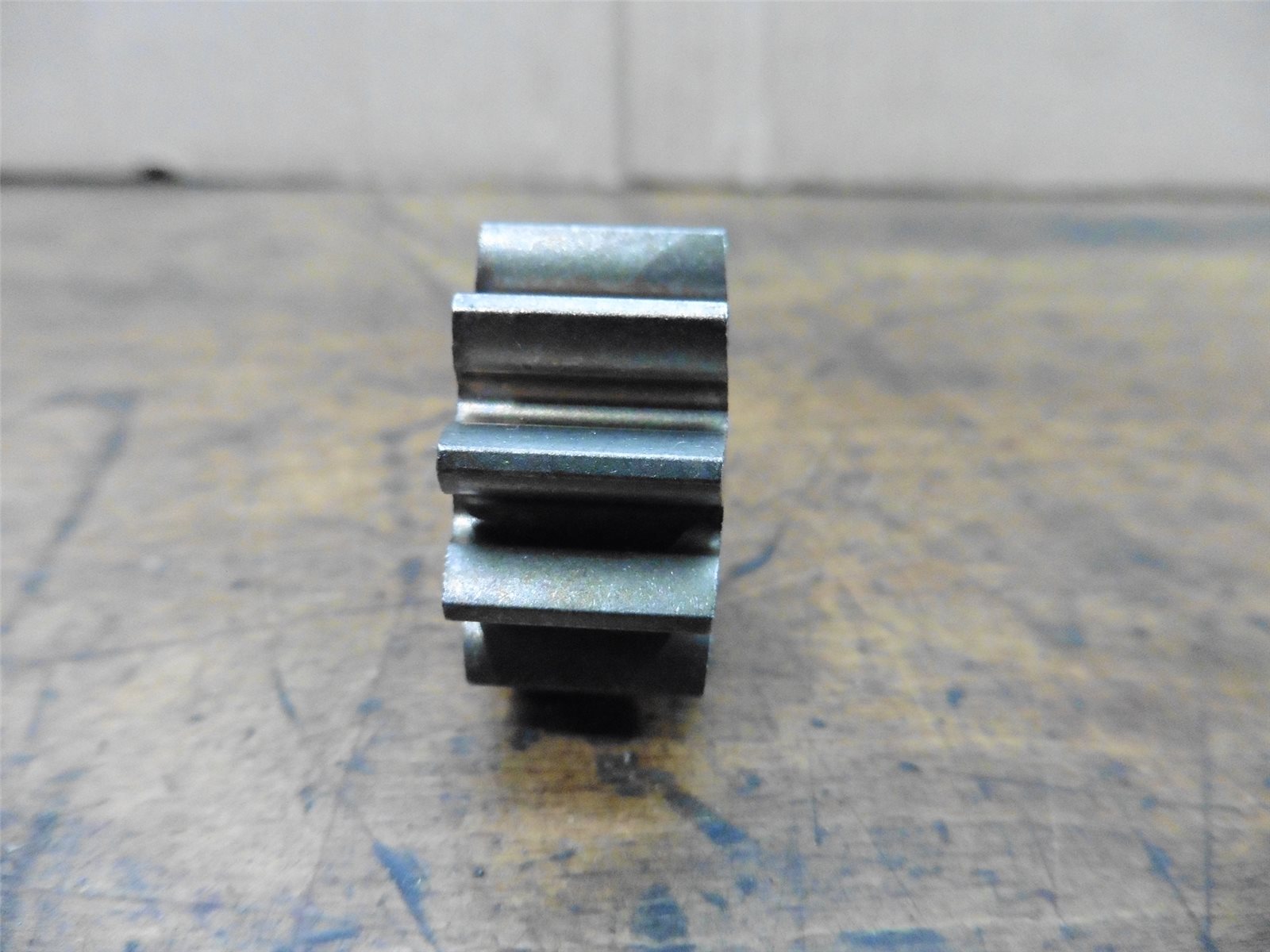

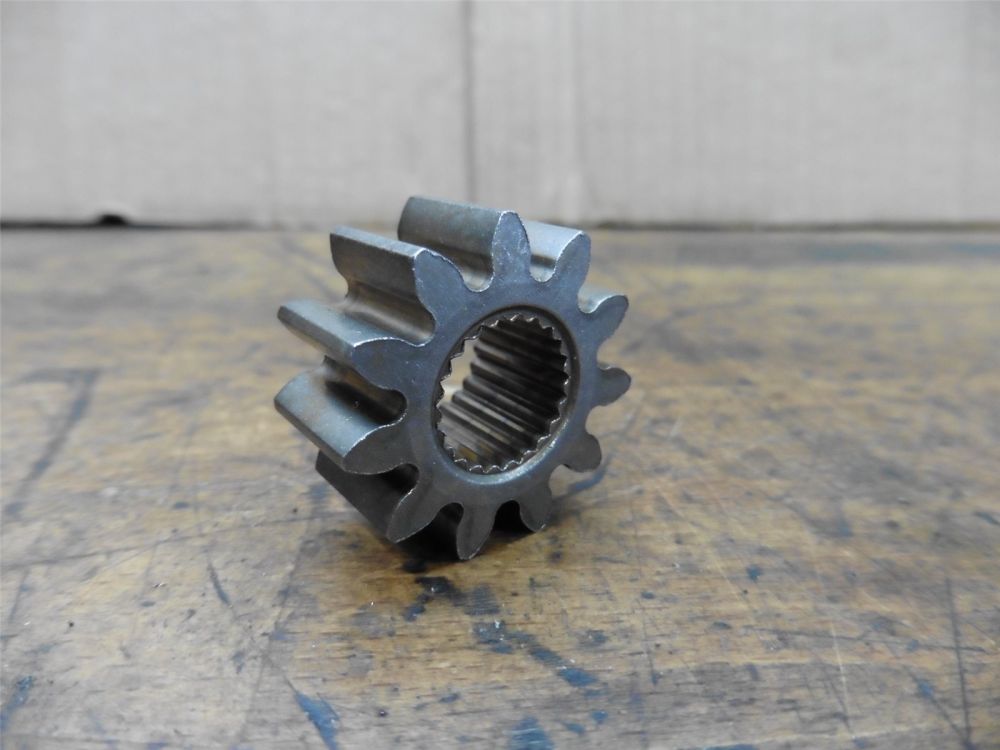

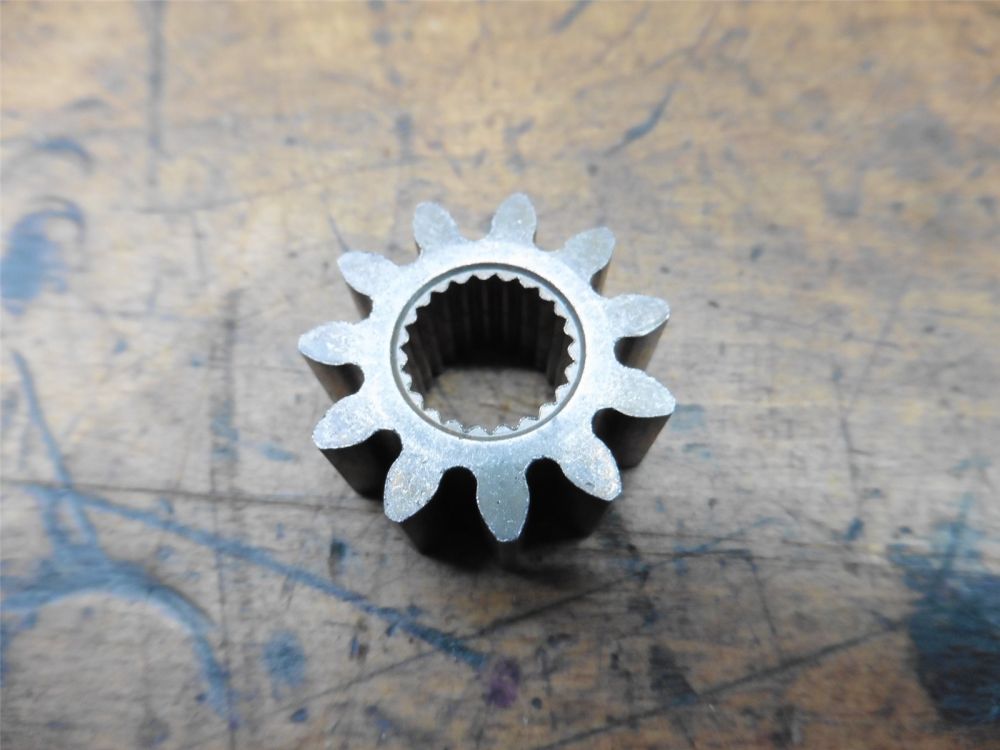

original MTD Zahnrad für die Lenkung von Rasentraktoren
original Artikelnr.:
717-1554
Abmessungen:

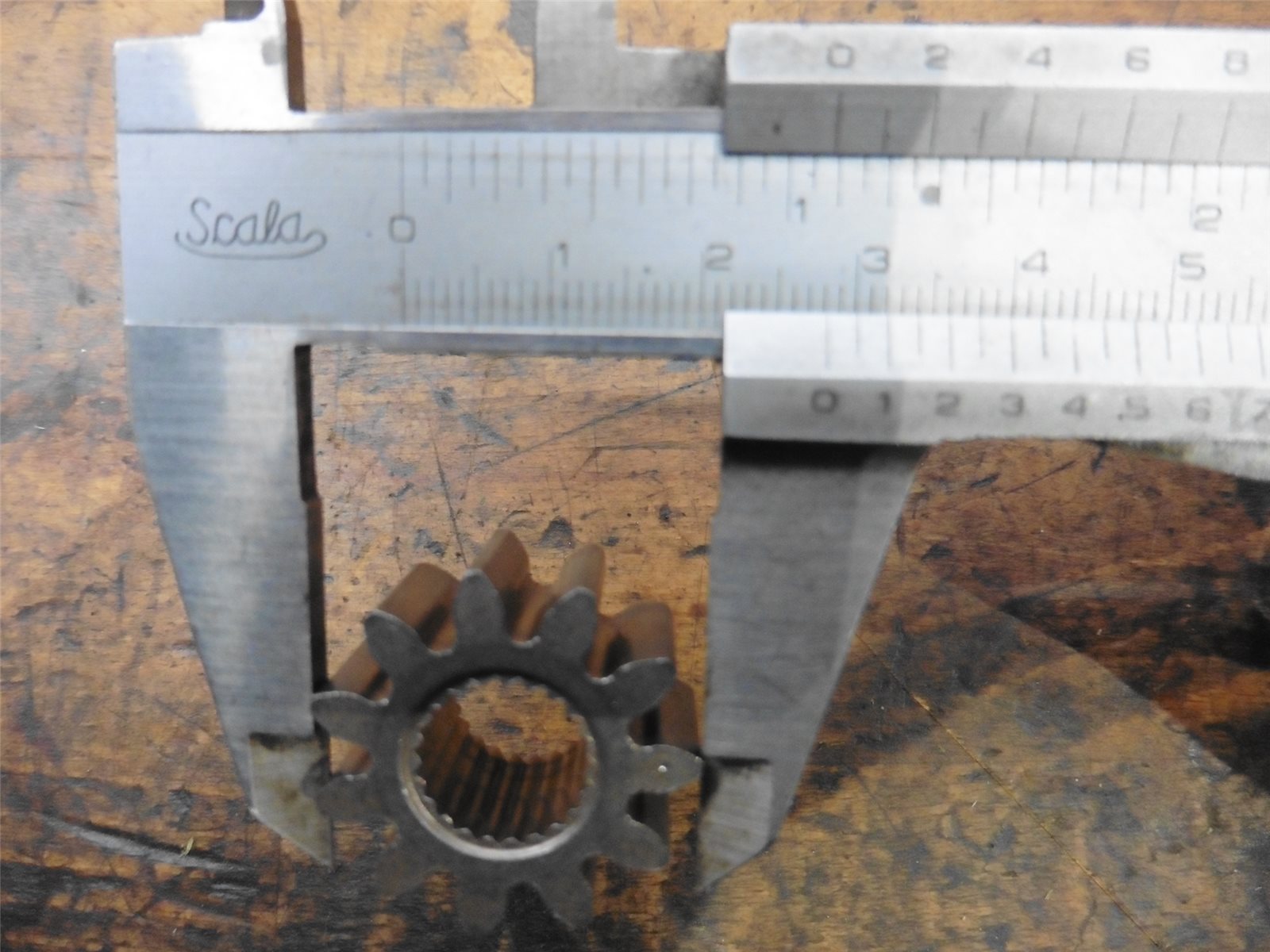

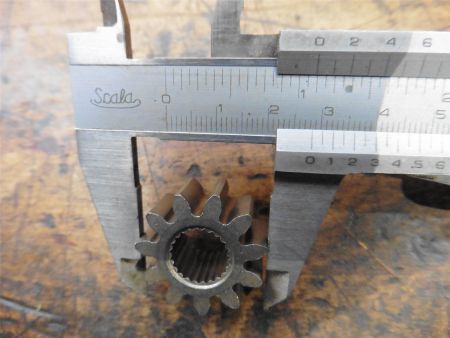

Außendurchmesser 28,4 mm
Innendurchmesser Vielzahn 12,8 mm

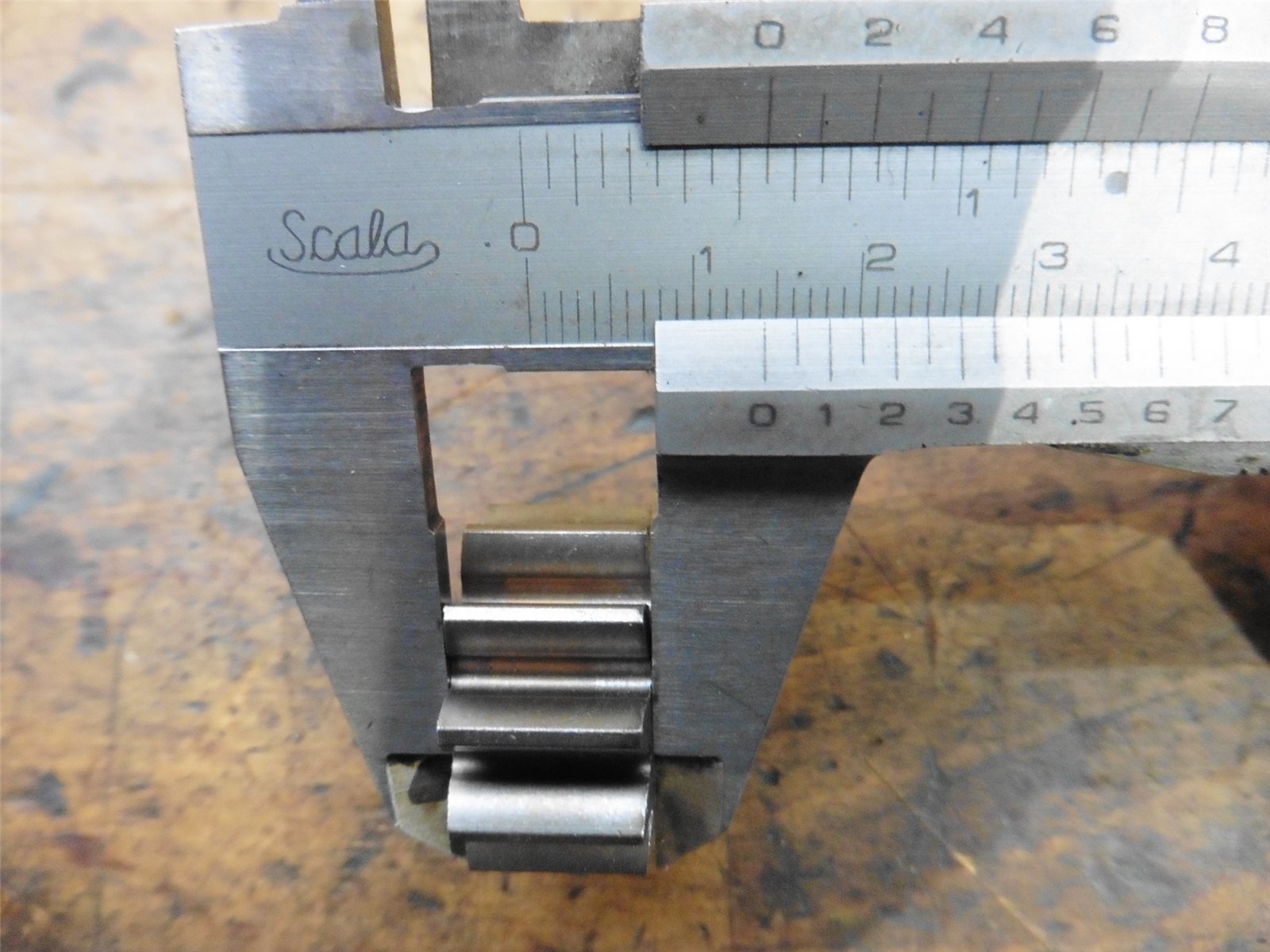

Breite
14,2 mm
11 Zähne
passend fürModelle:
T 516 NR / 13BT516N597 (2003)
XLX 117 SAL / 14AU806H690
(2003)
XLX 117 SAL / 14AU806H690 (2004)
DLX 96 SA / 13AA606F690
(2004)
DLX 96 SA / 13AV606F690 (2006)
DLX 96 SA / 13AV606F690
(2007)
DLX 96 SA / 13AV606F690 (2008)
DLX 107 SA / 13AA606G690
(2004)
DLX 107 SALK / 13AI606G690 (2004)
DLX 107 SALK / 13AI606G690
(2006)
DLX 107 SHL / 13AT616G690 (2004)
DLX 107 SHLK / 13AI616G690
(2007)
DLX 107 SHLK / 13AG616G690 (2008)
DLX 127 SAL / 13AP606P690
(2006)
DLX 127 SAL / 13AP606P690 (2007)
DLX 127 SAL-SK / 13AF606P690
(2008)
GLX 105 RA / 13BA506N690 (2003)
GLX 105 RA / 13BA506N690
(2004)
GLX 105 RA / 13BV506N690 (2005)
GLX 105 RA / 13BW506N690
(2006)
GLX 105 RA / 13BW506N690 (2007)
GLX 105 RA / 13BW506N696
(2007)
GLX 105 RA / 13CW506N690 (2008)
GLX 105 RA / 13CV50GN490
(2009)
GLX 105 RA / 13CV50GN690 (2009)
GLX 105 RA / 13CJ50GN490
(2010)
GLX 105 RA / 13CJ50GN690 (2010)
GLX 105 RA / 13CD50GN490
(2011)
GLX 105 RA / 13CD50GN690 (2011)
GLX 105 RA / 13CD50GN690
(2012)
GLX 105 RA / 13AD90GN690 (2012)
GLX 105 RAL / 13AD506N690
(2002)
GLX 105 RALK / 13BI506N690 (2003)
GLX 105 RALK / 13BI506N690
(2004)
GLX 105 RALK / 13BI506N690 (2005)
GLX 105 RALK / 13BI506N690
(2006)
GLX 105 RALK / 13BI506N690 (2007)
GLX 105 RALK / 13BG506N690
(2008)
GLX 105 RALK / 13BG50GN490 (2009)
GLX 105 RALK / 13BG50GN690
(2009)
GLX 105 RAT / 13B7506N690 (2005)
GLX 105 RAT / 13B7506N690
(2007)
GLX 105 RAT / 13BT506N690 (2008)
GLX 105 RAT / 13BT50GN690
(2009)
GLX 105 RH / 13BV516N690 (2005)
GLX 105 RH / 13BX516N690
(2006)
GLX 105 RH / 13BX516N690 (2007)
GLX 105 RH / 13CX516N690
(2008)
GLX 105 RH / 13AV51GN490 (2009)
GLX 105 RH / 13AV51GN690
(2009)
GLX 105 RH / 13AD51GN690 (2010)
GLX 105 RH / 13DJ51GN490
(2011)
GLX 105 RH / 13DJ51GN690 (2011)
GLX 105 RH / 13DJ51GN690
(2012)
GLX 105 RHL / 13AT516N690 (2002)
GLX 105 RHL / 13XT516N690
(2002)
GLX 105 RHL / 13BT516N690 (2003)
GLX 105 RHL / 13BT516N690
(2004)
GLX 105 RHL / 13BE516N690 (2005)
GLX 105 RHL / 13BP516N690
(2006)
GLX 105 RHL / 13BT516N690 (2006)
GLX 105 RHL / 13BP516N690
(2007)
GLX 105 RHL / 13BT516N690 (2007)
GLX 105 RHL-K / 13BI516N690
(2004)
GLX 105 RHL-K / 13BI516N690 (2005)
GLX 105 RHL-K / 13BI516N690
(2006)
GLX 105 RHL-K / 13BI516N690 (2007)
GLX 105 RHL-K / 13BG516N690
(2008)
GLX 105 RHL-K / 13AG51GN490 (2009)
GLX 105 RHL-K / 13AG51GN690
(2009)
GLX 105 RHL-K / 13BG51GN490 (2010)
GLX 105 RHL-K / 13BG51GN690
(2010)
GLX 105 RHL-K / 13CG51GN490 (2011)
GLX 105 RHL-K / 13CG51GN690
(2011)
GLX 105 RHL-K / 13CG51GN690 (2012)
GLX 105 RHL-K / 13AG91GN690
(2012)
GLX 105 RHL-SK / 13BF516N690 (2008)
GLX 105 RHL-SK / 13AF51GN490
(2009)
GLX 105 RHL-SK / 13AF51GN690 (2009)
GLX 105 RHL-SK / 13AF51GN490
(2010)
GLX 105 RHL-SK / 13AF51GN690 (2010)
GLX 105 RHL-SK / 13CF51GN490
(2011)
GLX 105 RHL-SK / 13CF51GN690 (2011)
GLX 105 RHL-SK / 13CF51GN690
(2012)
GLX 105 RHL-SK / 13AF91GN690 (2012)
GLX 107 SA / 13BA506G690
(2003)
GLX 107 SAL / 13AE506G690 (2002)
GLX 107 SALK / 13BI506G690
(2003)
GLX 107 SHL / 13BT516G690 (2003)
GLX 117 SAL / 13AU606H690
(2003)
GLX 117 SAL / 13AU606H690 (2004)
GLX 122 RA / 13AX506J690
(2005)
GLX 122 RHL / 13AT516J690 (2004)
GLX 122 RHL / 13AU516J690
(2004)
GLX 122 RHL / 13AP516J690 (2005)
GLX 122 RHL / 13AE516J690
(2008)
GLX 122 RHL / 13BU51GJ690 (2010)
GLX 122 RHL / 13BF51GJ690
(2011)
GLX 122 RHL-SK / 13AI516J690 (2008)
GLX 122 RHL-SK / 13AI51GJ490
(2009)
und viele andere
Alle Ersatzteile für MTD lieferbar.
Bei Fragen einfach
anrufen.
